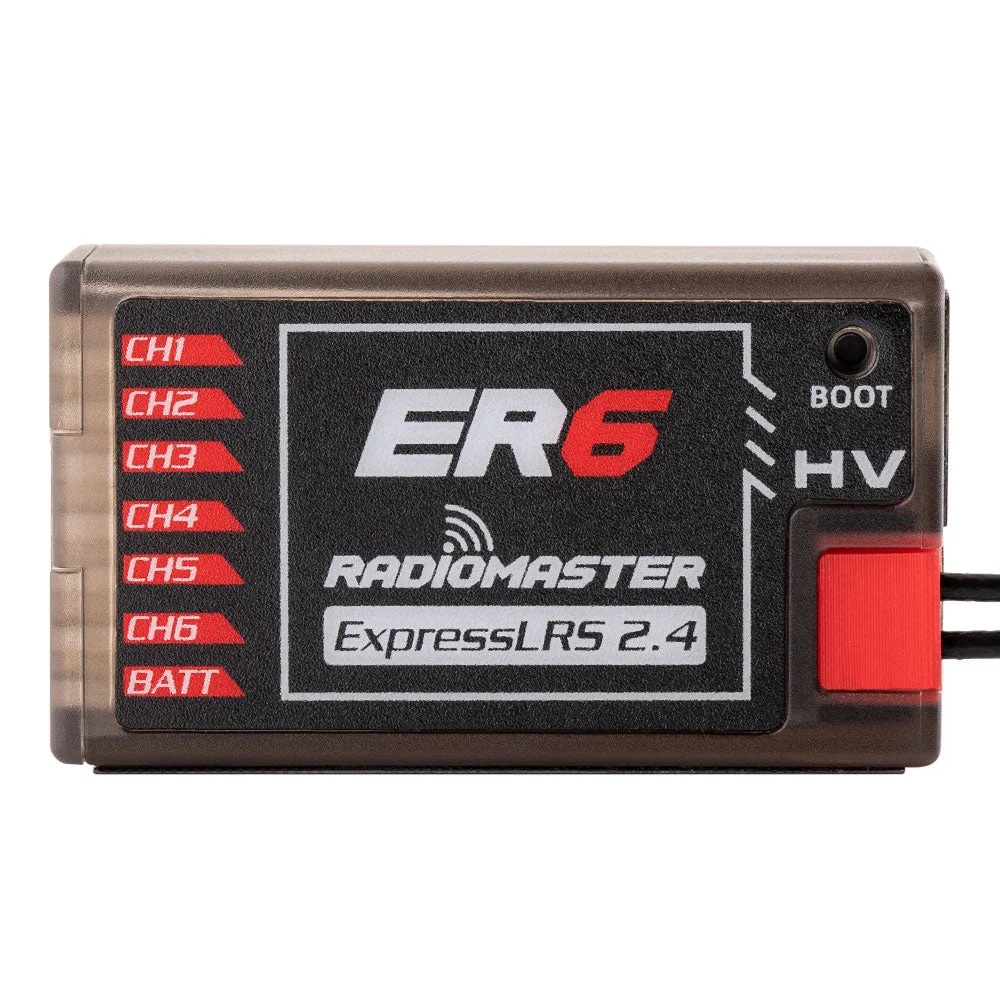

RadioMaster ER6 6CH 2.4GHz ELRS PWM Receiver

The RadioMaster ER series of PWM receivers is built on the innovative ExpressLRS protocol. It provides high performance, dependable signal, versatile configuration, and quick response time, offering a new experience for your projects and applications. The ER6 ELRS receiver can drive up to 6 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

Features:

Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, low latency, and strong link quality

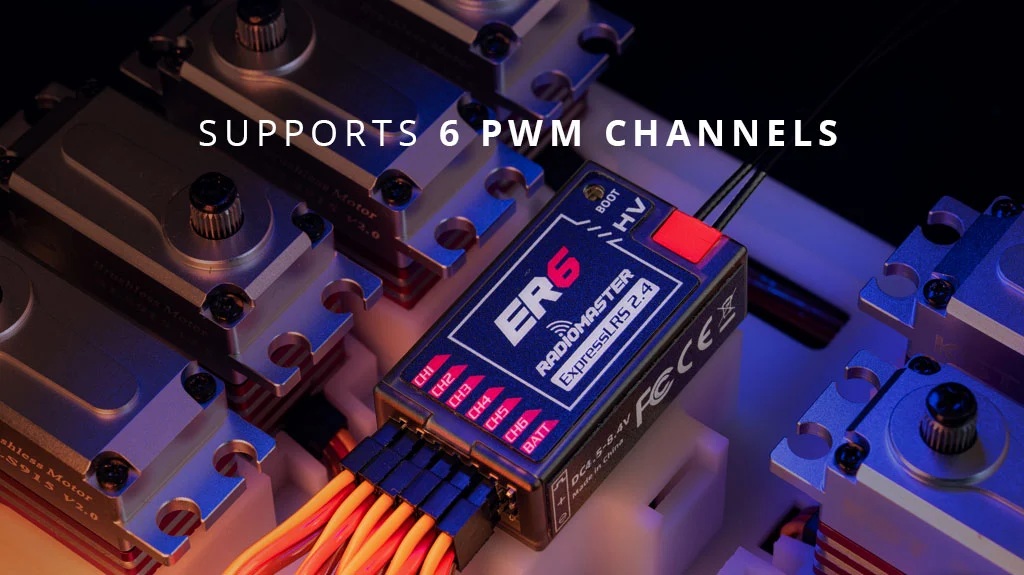

Support 6 PWM Channels
Optimized ground up PCB design

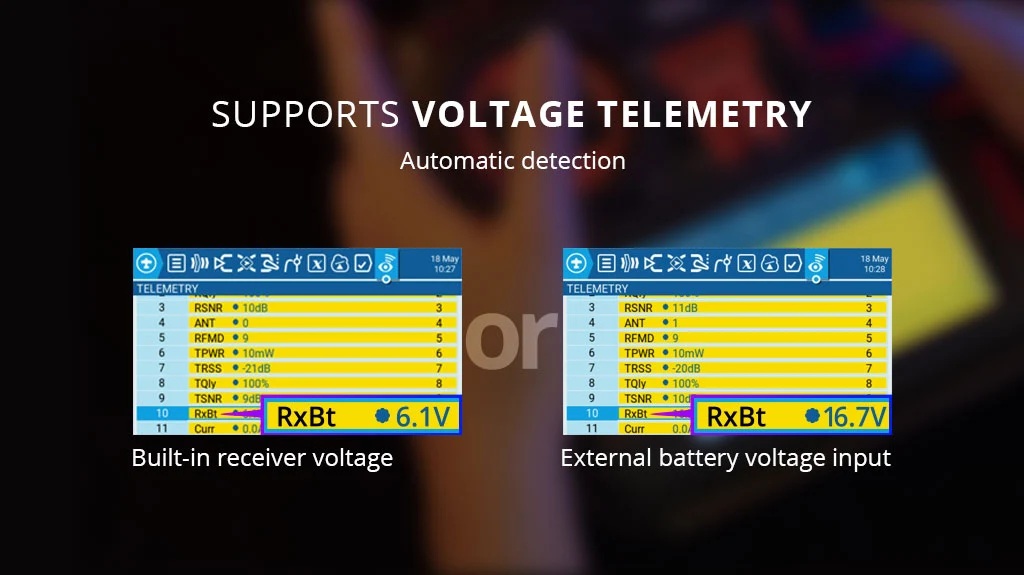

Automatically voltage telemetry of external battery voltage or built-in receiver voltage
Supports Wi-Fi updates and WEBUI configuration
High quality 2.54 mm connector

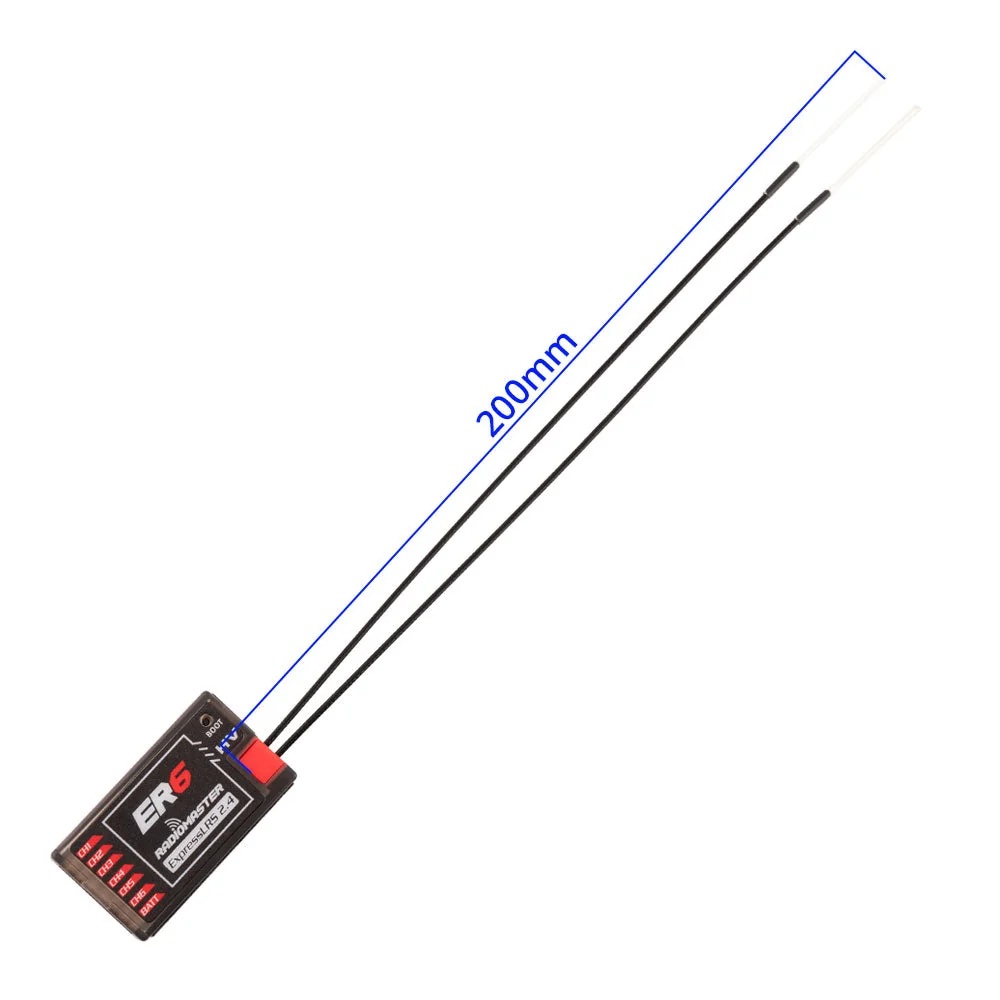

Standard 20 cm High Sensitivity Antenna

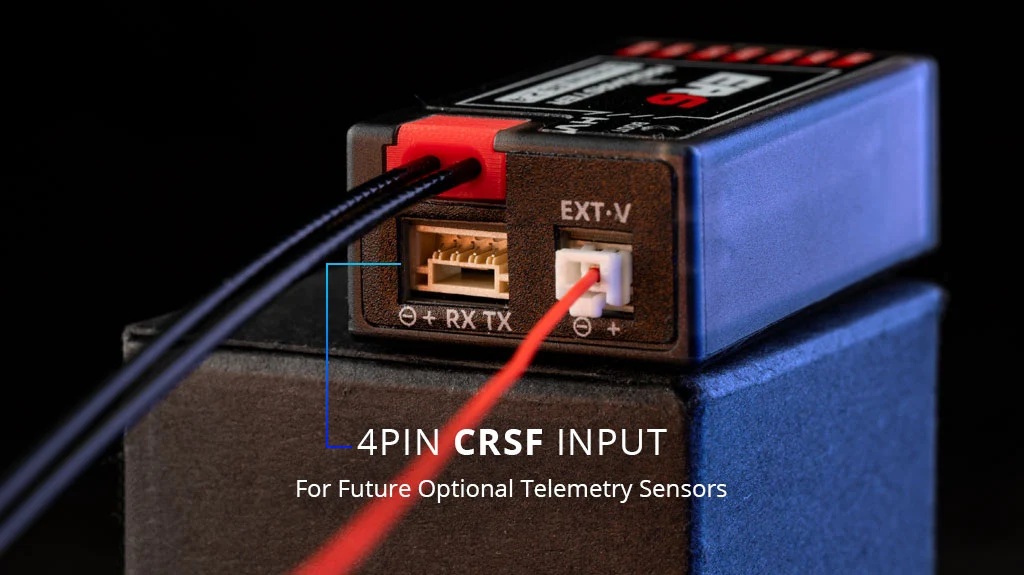

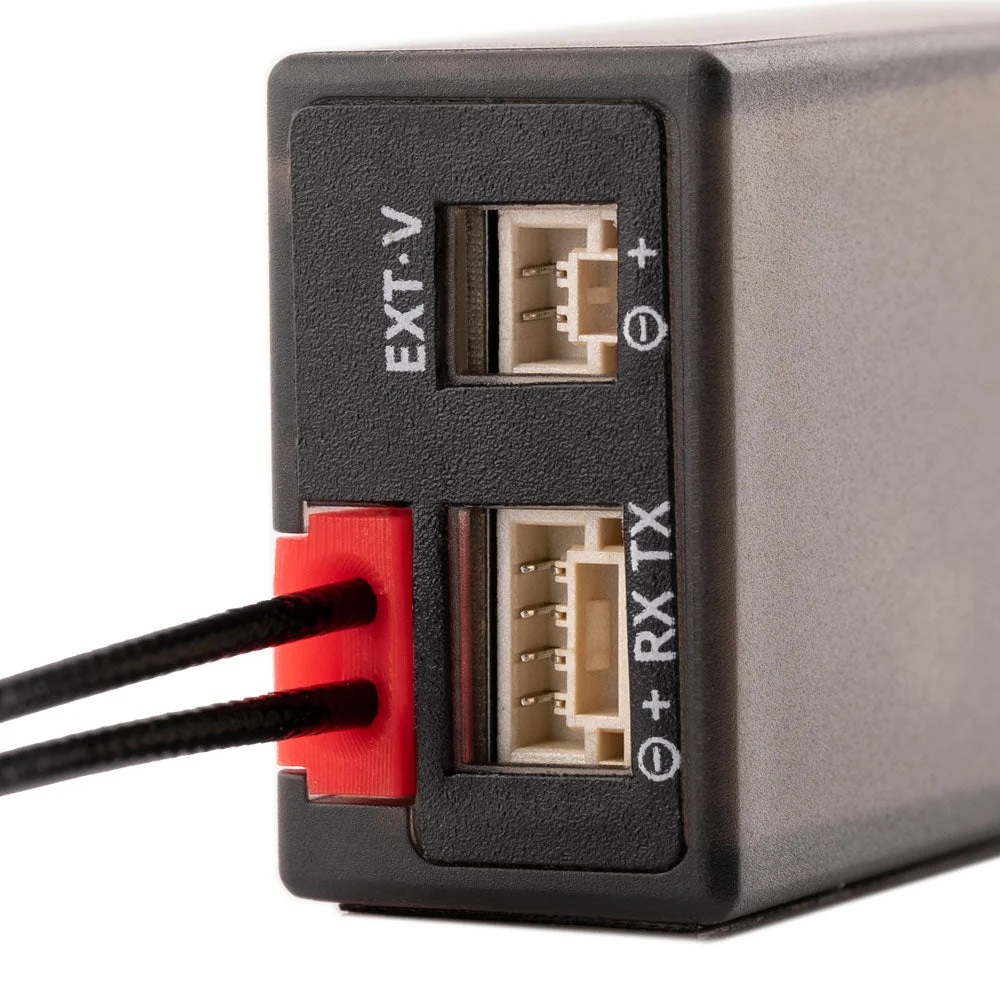

Reserve 4pin CRSF input port
The shell adopts one-piece molding process with high structural strength
For any application
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

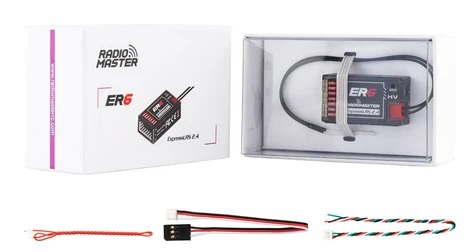

Package:

1 * ER6 2.4GHz ELRS PWM Receiver 1 * Voltage telemetry wire (Type-B)
1 * CRSF wire
1 * ELRS- RX- SBUS wire
1 * User Card

Specyfication

Item: ER6 2.4GHz ELRS PWM Receiver

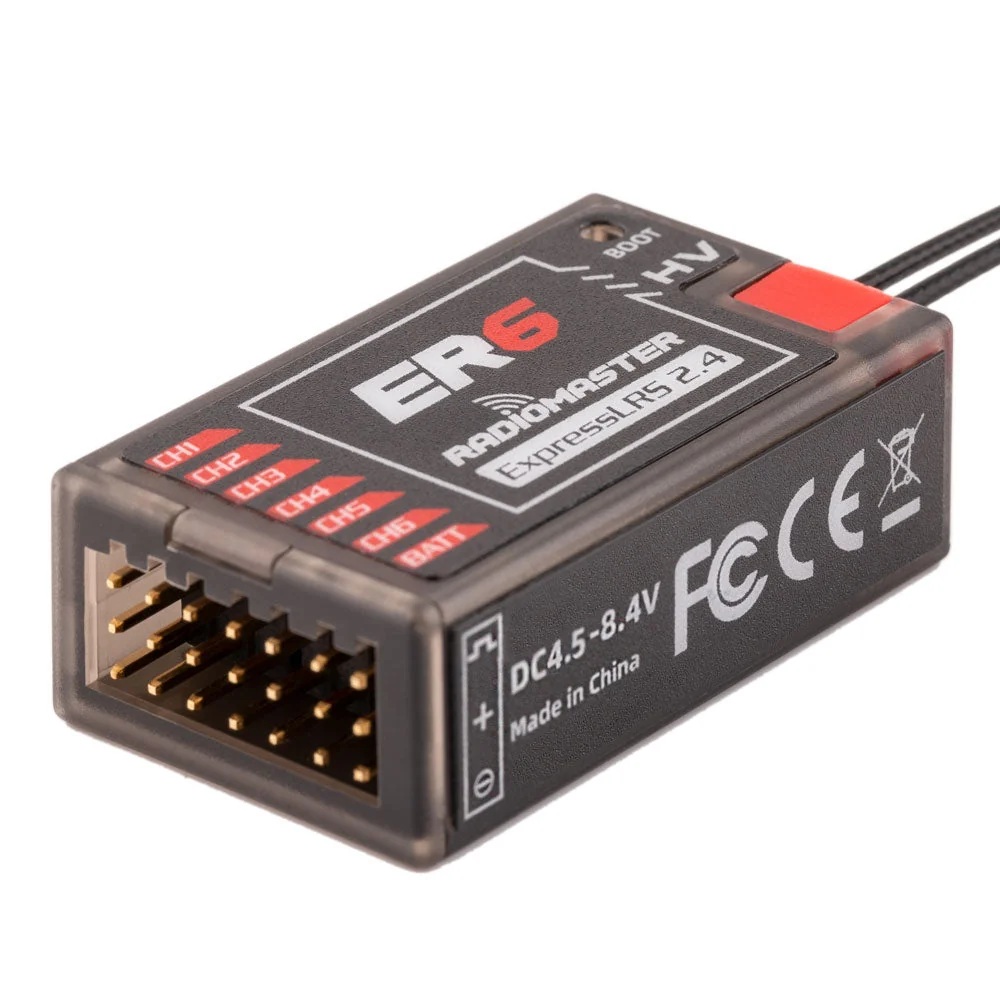

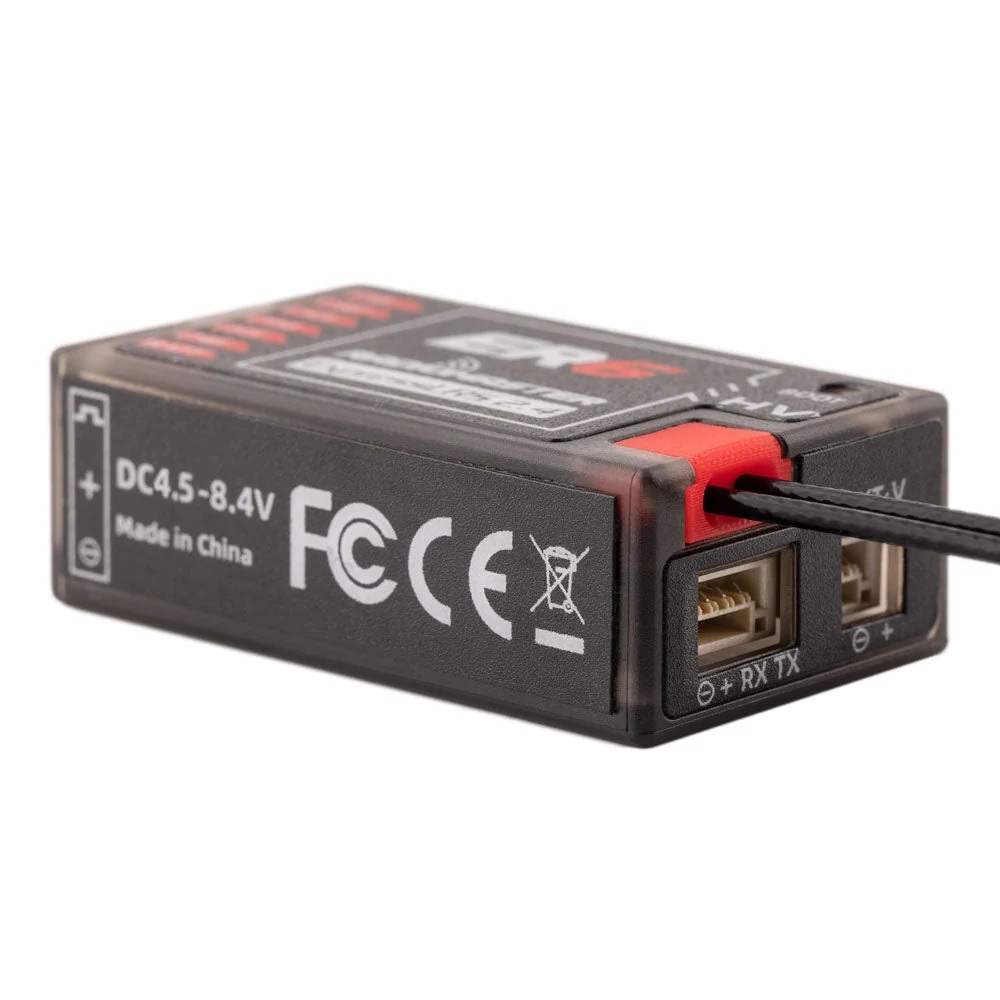

Power supply: DC 4.5 - 8.4V
Antenna type: 20cm high sensitivity dual antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 6CH PWM
Serial Output: CRSF / Sbus
Telemetry power: maximum 100mw (LUA Adjustable)
Telemetry Battery voltage detection range: DC 4.0 - 35V
Bus interface: CRSF
Weight: 14.5 grams

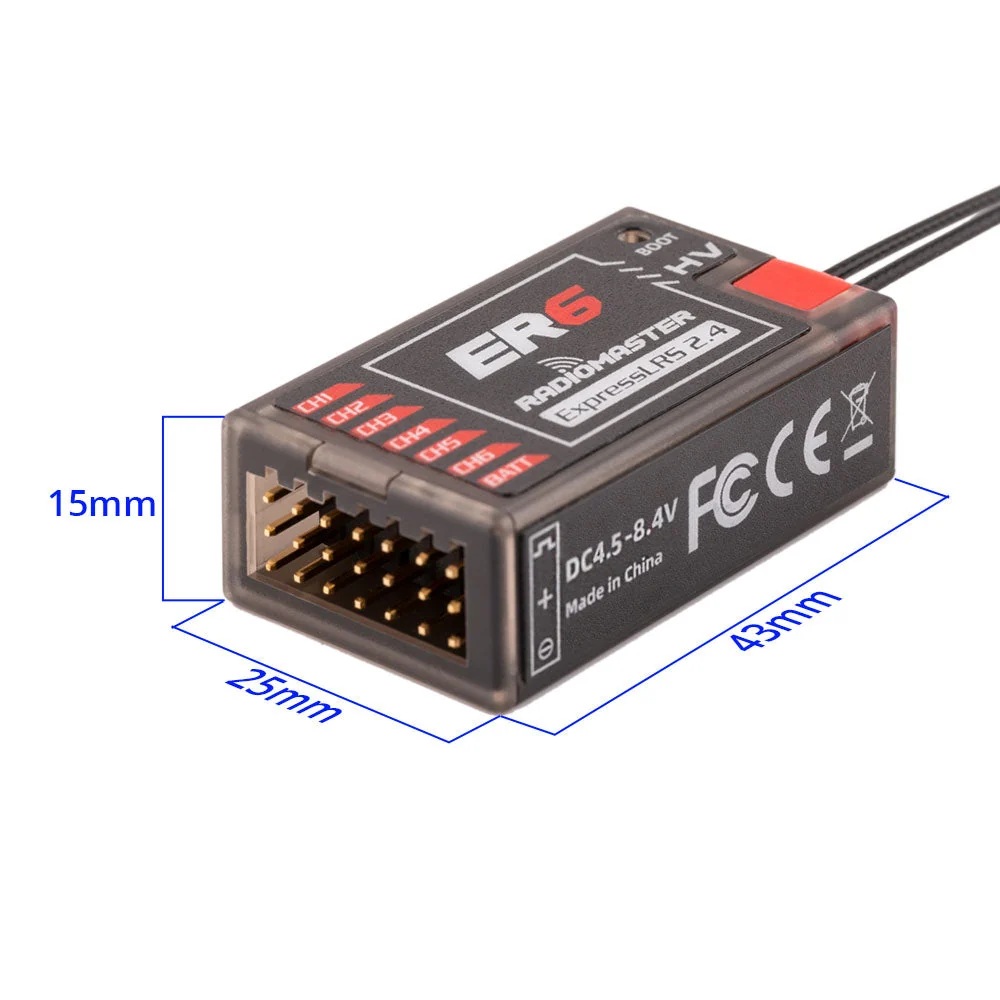

Dimensions: 43*25*15mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: ER6 2.4GHz Diversity+6xPWM RX
