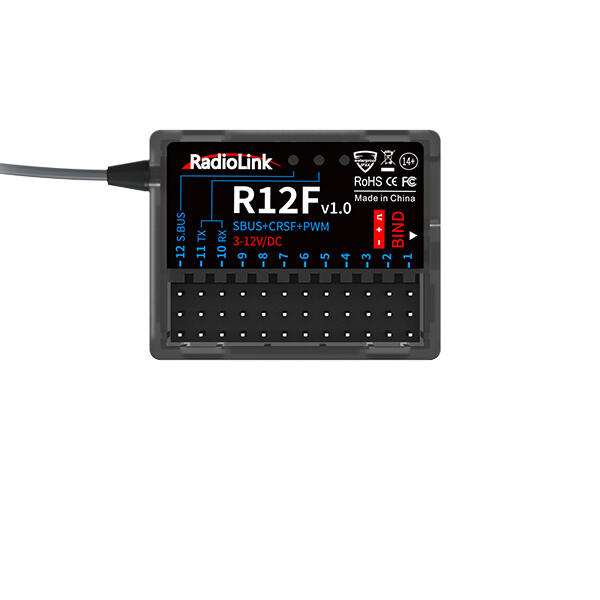

RadioLink R12F Receiver 2.4G 12-Ch SBUS & PPM

Cutting-edge Communication Technology 4000 Meters Control Distance

FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance, perfect for multiplayer complete synchronously, and helps protect from fuel engine spark and ensures the safety of enjoying fuel-powered model cars. 600 meters stable offshore control distance and 4000 meters air control distance.


Built-in Simulator Program

R12F come with built-in PC Game Joystick communication program(requires a firmware upgrade to V1.6), so it supports the latest simulator by connecting to the computer directly via Type-C port,such as TRYP FPV, AeroFly, Uncrashed, liftoff, FPV LOGIC, Velocidrone (Black Sheep Simulator) and other open source simulators. No need to supply additional power to the receiver.It can be used on both Apple and Windows computers. Compatible transmitter：T16D/T12D/T8FB/T8S/RC8X/RC4GS V2/RC4GS V3/RC6GS V2/RC6GS V3

PWM, SBUS, and CRSF Signal-supported

PWM working mode: Red LED always on indicates PWM signal output, 12 channels total. PWM+SBUS working mode: Blue and red LED always on indicates PWM+SBUS signals output. CH1 to CH11 is with PWM signal output while CH12 is with SBUS signal output. Users can personalize signal output mode to fully enjoy the fun of a model bait boat or car with FPV. PWM+CRSF+SBUS working mode: Blue, green, and red LED always on indicates PWM+CRSF+SBUS signals output. CH1 to CH9 outputs the PWM signal, CH10 to CH11 outputs the CRSF protocol, and CH12 outputs the SBUS signal. CRSF+PWM working mode: Green and red LED always on indicates PWM+CRSF signals output. CH1 to CH9, and CH12 outputs the PWM signal, CH10 to CH11 outputs the CRSF protocol.

Anti-polarity Connect Protection, Power by Wide Voltage

Even if the polarities are mistakenly connected, the receiver will not get damaged. The power of 3-12V supports high voltage servo.

Subsidiary ID Rescue, Towing, Parent-child Entertainment, and Friend Teaching in One Control

Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats. Example of the use of the Subsidiary ID ①: Ship No. 1 is parked in the middle of the lake due to insufficient engine battery voltage. At this time, ship No. 2 can be switched to tow to rescue. Example of the use of the Subsidiary ID Mode ②: After the No. 1 trailer consigns the No. 2 vehicle to the designated address. Switch the Subsidiary ID number of the remote control from No. 1 to No. 2 to control the No. 2 car, and let the No. 2 car reverse from the trailer.

Receiver Supports Upgrade Online

With a Type-C cable (for data transmission) connecting the R16F to the computer, the latest cutting-edge functions can be easily added without any extra device.

Full Models with Full Functions

R12F, with 12 channels output, is compatible with helicopters, fixed-wing, gliders, multi-rotors, engineering vehicles, racing boats, robots, lawnmowers, bait boats, mechas, and other models on the market.

Multiple Transmitter Compatible

R12F is compatible with RadioLink T series aircraft transmitters and all the surface transmitters. T series aircraft transmitters: 16 fully-proportional channels transmitter T16D, 12 fully-proportional channels transmitter T12D, 8 channels transmitter T8FB(BT), T8S(BT), T8FB(OTG), and T8S(OTG). All the surface transmitters: 8 channels transmitter RC8X, 7 channels transmitter RC6GS V3, 5 channels transmitter RC4GS V3, 6 channels transmitter RC6GS V2, RC6GS, and 4 channels transmitter RC4GS V2, RC4GS.

Specifications

Dimensions: 35.6 × 25 × 13.6 mm (1.4" × 0.98" × 0.54")
Weight: 11.8 g (0.42 oz)
Antenna Length: 205 mm (8.07")
Channel: 12 channels
Operating Voltage: 3–12 V
Operating Current: 37 ± 3 mA @ 5V
Signal Output: SBUS + CRSF + PWM
Output Frequency: 2.4 GHz ISM band (2400 MHz–2483.5 MHz)
Spread Spectrum: FHSS, 67 channels, pseudo-random frequency hopping
Channel Resolution: 4096 with regular jitter of 0.25 μs
Adaptable Models: Helicopter, Fixed-wing, Glider, Multicopter, Car, Boat, Robot
Control Distance: 4000 meters in the air (maximum range tested in unobstructed area free of interference)
Upgrade Online: Via Type-C cable connecting R12F to a computer for adding the latest functions without extra devices
Response Latency: 3 ms, 4 ms, or 14 ms selectable
Simulator Function: Built-in PC Game Joystick program (requires firmware upgrade to V1.7), supports simulators like TRYP FPV, AeroFly, Uncrashed, Liftoff, FPV LOGIC, Velocidrone (Black Sheep Simulator), and other open-source simulators; connects via Type-C, no extra power needed; compatible with Apple and Windows
Operating Temperature: -30° to 85° C
Compatible Transmitters: T16D, T12D, T8FB, T8S, RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, RC6GS, RC4GS
