RadioLink Crossflight Mini Flight Controller Autopilot

The RadioLink Crossflight replaces the RadioLink Mini Pixhawk. The new version benefits from having more PWM output motor / servo channels, up from 6 to 10. It also now features an integrated OSD (on screen display) module for FPV setups. The Crossflight Mini Flight Controller offers the same capabilities of the original Pixhawk, but in a mini form factor. Its reduced size lends it to smaller models like racing drones, model boats and cars, so now even your tiniest RC model can benefit from a sophisticated GPS autopilot, offering cool functions like return to home and mission planning. Set up and operation is made simple using the industry leading “Mission Planner” software. The FC is supplied with a host of connection cables, buzzer / switch, adhesive pad and power module. You can also select the package that comes with the RadioLink TS100 GPS. Please note – this FC is not officially supported by ardupilot. Firmware: This RadioLink Crossflight comes preflashed with a RadioLink-branded version of ArduCopter (Multicopter). Crossflight firmware can only be upgraded by using Radiolink Mission. Planner, however parameters can be set using Radiolink Mission Planner, ArduPilot Mission Planner and QGC Mission Planner.

Technology Assurance

The unique high dynamic algorithm flight controller, which combines Kalman filtering technology and inertial navigation algorithm, is widely used in high-speed autonomous drones, such as the documentary “Amazing Drone Race China” shot by Tencent in 2018, the movie “WU KONG” shoot by mobile phone Huawei P30 Pro in 2019 and the XPENG T1 prototype Flying car. In 2021, the control system can execute missions programmed automatically, designed for the agricultural vehicles has achieved the ideal operation effect and solve the industry problem of agricultural vehicles will pressing seedlings when changing lines.

Automation Software Testing System Quality Assurance

The same Automation Software Testing System as PIXHAWK and Mini Pix helps realize test automation from the sensor to connection ports and interface. The test efficiency and quality assurance are far superior to traditional manual tests, ensuring the quality of every function of every CrossFlight.

Vibration Damping by Software As stable as Mini Pix

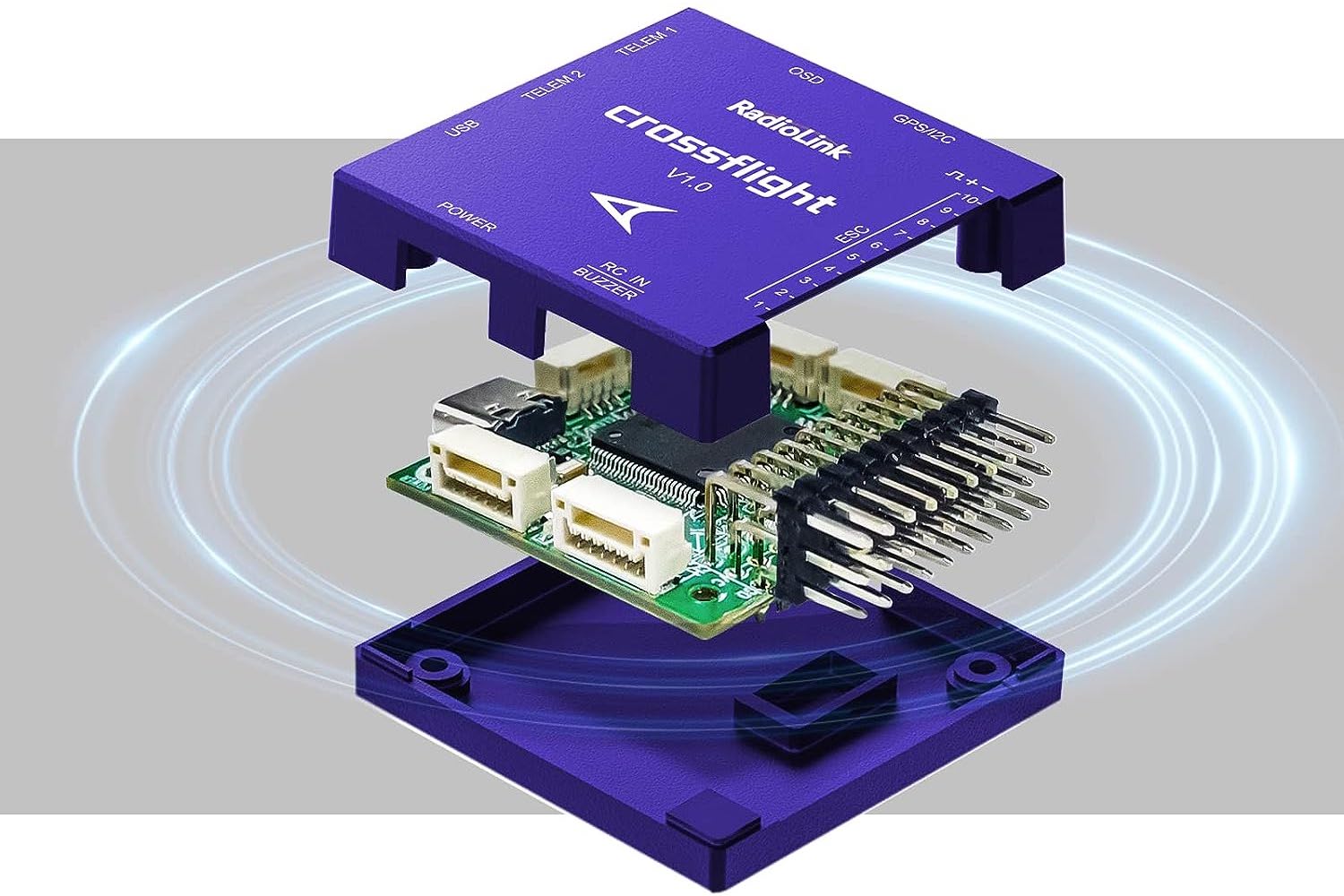

Vibration Damping by Software same as the Mini Pix, it can effectively filter out high-frequency vibrations, ensure the accuracy of sensor data at all times, achieve better Altitude Hold effect, and make the flight more stable. Breaking the tradition, all the planes with fixed wings, drones(including micro racing drones such as 210, 220, 250), and even helicopters do not need to add a mounting frame. It has a shell completely closed to protect the interaction effects of air current wake on air pressure during flight. The mainboard has an air pressure vent to ensure the accuracy of the barometer testing. Shell design and vibration damping by software make Radiolink CrossFlight achieve a better Altitude Hold effect.

OSD Module Integrated Real-time Gesture Visualization Display

CrossFlight can graphically display OSD information such as the flight direction and position of the aircraft in real-time without the need for an external OSD module. The pilot can intuitively grasp the status and coordinates* of the aircraft at any time during the first-view (FPV) flight of aircraft such as racing drones and long-distance fixed-wing aircraft. Achieve a more comfortable flying experience.

10 Channels PWM Output

CrossFlight, with a 39.7*39.7*13mm mini size, supports up to 10 channels of PWM output, and is adaptable to Multirotor, Airplanes, helicopters, cars, and boats. It can be used in multiple industries such as aerial photography, public safety, aerial surveying and AEC, electricity, oil and gas, surveying and mapping, agriculture, education, and flight formation.

Mini Size as F4

The dimension is only 39.7*39.7*13mm, which eliminates unnecessary redundant interfaces and reduces the complexity of installation, the total weight with connecting cables is 54 grams, which reduces the weight of the whole machine to lengthen the flight time and can be installed in small-sized high-speed aerial photography drones for stunt skiing and supercar promotional videos.

Power Module with Wide Voltage Input

The power module that comes with the flight controller with a wide voltage input range of 2-12S (7.4-50.4V), a maximum detection current of 90A (single ESC maximum detection current is 22.5A), a BEC output voltage of 5.3±0.2V, and a BEC output current of 2A.

Cost-effective Solution

Flight controller CrossFlight, Radiolink M8N mini GPS TS100, 8 channels remote control system T8FB/T8S, ultrasonic sensor SU04/SUI04, almost all the parts of RC drone you need we can offer. Super adaptability of cost-effective solutions in various application fields such as cutting-edge UAV solutions, UAV education, agriculture, flight formation, educational companies, security and rescue, smart epidemic prevention, public safety, and cinematography

Package:

1. Radiolink Crossflght-FC
2. Cables
