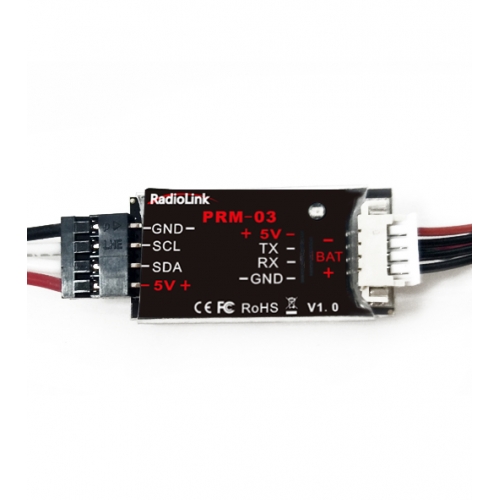

RadioLink OSD Information Telemetry Module PRM-03

RadioLink

Availability: Available in stock

Shipping time: 24 hours

The cost of shipping: from 2.75 Euro Available delivery forms for viewing the product:Curier Service - 3.75 Euro
Air Mail - 4.00 Euro
Poczta Polska list polecony - 4.00 Euro
Surface mail - 3.50 Euro
InPost Paczkomaty24 - 2.75 Euro
Personal Acceptance - 0.00 Euro

Producer code: PRM-03

Stockage:

Price: 17.00 Euro

Quantity: pcs.
Add to cart

add to wish list

  • Product description
  • Specyfikication:
  • Product reviews (0)


RadioLink PRM-03 Moduł telemetrii OSD

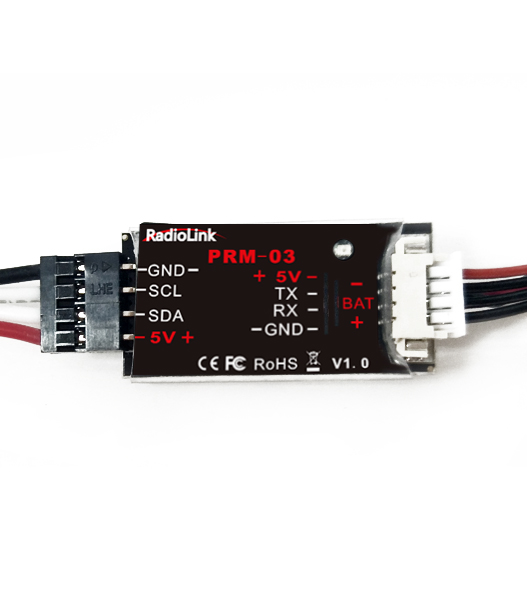

OSD Telemetry Sensor: PRM-03



OSD Telemetry module transmits the data from the flight controller and shows the data of SPEED, RISE, THRO, VOLT, LATI, LONG, ALT, GPS, RSSI, MODE, YAW, ROLL, PITC, DIST in the display screen of AT9, AT9S, AT10 or AT10II.



Pay Attention: The old version AT9 and AT10 have to upgrade the firmware when if use PRM-03 to telemetry OSD information. Upgrade AT9 firmware to V1.2.6(OSD) or upgrade AT10 firmware to V1.0.6(OSD).





1. Introduction:



(1). So far, OSD information telemetry module PRM-03 is compatible with flight controller PIX and APM.

(2). Support RadioLink receivers R9D, R9DS, R10D, R10DII, R10DS and R12DS.

(3). PRM-03 can telemetry Speed, Rise, Throttle, Voltage, Longitude, Latitude, Altitude, GPS, RSSI, Flight Mode, YAW, ROLL, PITC, Distance.

(4). PRM-03 is compatible with 1 cell to 12 cells battery(3.7~50.4V).





2. Connection

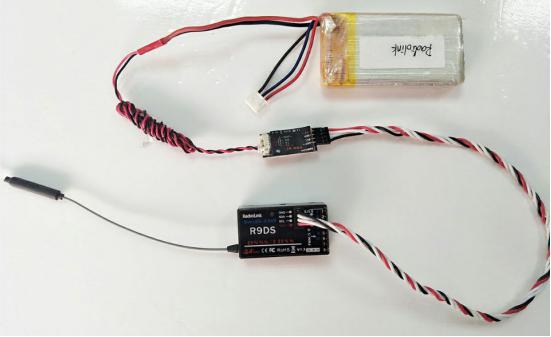

 (1) Connect one end of the telemetry module PRM-03 to R9D/R9DS/R10D/R10DII/R10DS/R12DS and the other end to battery if you just need feedback battery voltage. Same function as RadioLink PRM-01 if you connect like that.

(2) If you want to feedback Speed, Rise, Throttle, Voltage, Longitude, Latitude, Altitude, GPS, RSSI, Flight Mode, YAW, ROLL, PITC, Distance information, please connect one end of the OSD information telemetry module PRM-03 to R9D/R9DS/R10D/R10DII/R10DS/R12DS and the other end to the TELEM port of PIX or APM.

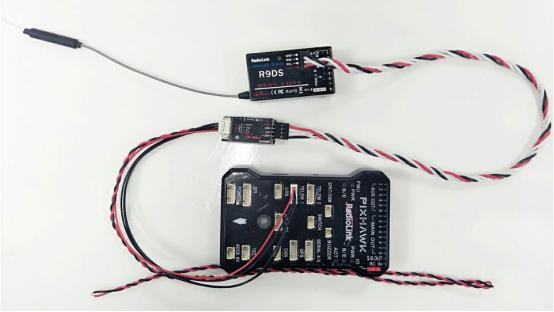

For example: connect to PIX:

The information will display on the RECEIVE menu.

 Displaying effect (AT9S)

 Displaying effect (AT10)



Technical Parameters



(1). Size: 27*13mm

(2). Weight: 6g(including the wires)

(3). So far, OSD information telemetry module PRM-03 is compatible with flight controller PIX and APM.

(4). Support RadioLink receivers R9D, R9DS, R10D, R10DII, R10DS and R12DS.

(5). PRM-03 can telemetry Speed, Rise, Throttle, Voltage, Longitude, Latitude, Altitude, GPS, RSSI, Flight Mode, YAW, ROLL, PITC, Distance.

(6). PRM-03 is compatible with 1 cell to 12 cells battery(3.7~50.4V).

Technical Parameters



(1). Size: 27*13mm

(2). Weight: 6g(including the wires)

(3). So far, OSD information telemetry module PRM-03 is compatible with flight controller PIX and APM.

(4). Support RadioLink receivers R9D, R9DS, R10D, R10DII, R10DS and R12DS.

(5). PRM-03 can telemetry Speed, Rise, Throttle, Voltage, Longitude, Latitude, Altitude, GPS, RSSI, Flight Mode, YAW, ROLL, PITC, Distance.

(6). PRM-03 is compatible with 1 cell to 12 cells battery(3.7~50.4V).
