Radiolink Mini OSD Module for Image Transmission Mini PIX Pixhawk Flight Controller Board RC Racing FPV Drone

RadioLink

Availability: Available in stock

Shipping time: 24 hours

The cost of shipping: from 2.75 Euro Available delivery forms for viewing the product:Curier Service - 3.75 Euro
Air Mail - 4.00 Euro
Poczta Polska list polecony - 4.00 Euro
Surface mail - 3.50 Euro
InPost Paczkomaty24 - 2.75 Euro
Personal Acceptance - 0.00 Euro

Producer code: osd

Stockage:

Price: 14.75 Euro

Quantity: pcs.
Add to cart

add to wish list

  • Product description
  • Specyfications:
  • Product reviews (0)

Radiolink Mini OSD Module for Image Transmission Mini PIX Pixhawk Flight Controller Board RC Racing FPV Drone



Real-time Gesture Visualization Display

alt



Real-time Gesture Visualization Display



RADIOLINK MINI OSD module works perfectly withPIXHAWK and MINI PIX, applying to FPV flight. Real-time visualization display shows the position and direction of the aircraft. Pilots can directly get the status and coordinates anytime and enjoy better flight experience.



alt

Smallest OSD Module with Complete Functions

Extremely light weight of 3.5g, mini size of 22*31mm, even MINI racing drone can easily carry. Compatible with all flight controllers with MAVIink serial protocol, real-time display of flight information such as flight modę, distance, GPS satellites, longitude and latitude, vertical speed, magnetic deviation, current time, battery voltage, current, wind speed, return route, exact route, vibration status, direction, etc. Rich parameter display and thoughtful setup make safer flight.


alt

English Parameters Setup APP USB Online Upgrade

English parameters setup APP, users can personalize flight parameters display layout and font style. Adding new functions with USB online upgrade makes your OSD module always excellent.

alt
alt

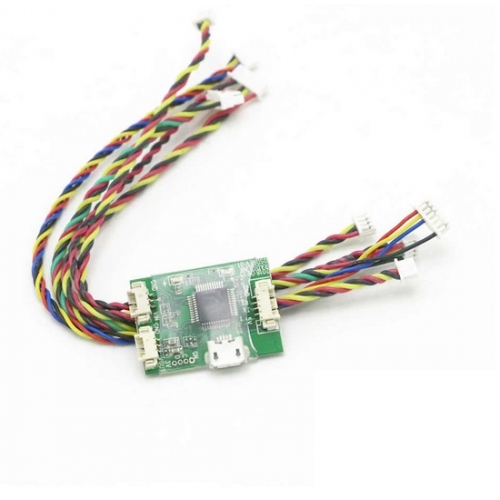

Package

alt

Specifications

Item Name: MINI OSD Video Overlap Module
Color: Green
Material: Metal and
Applicable Flight Controllers: All FC with MAVlink serial protocol

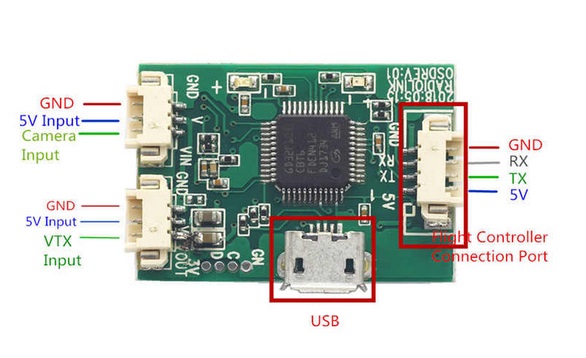

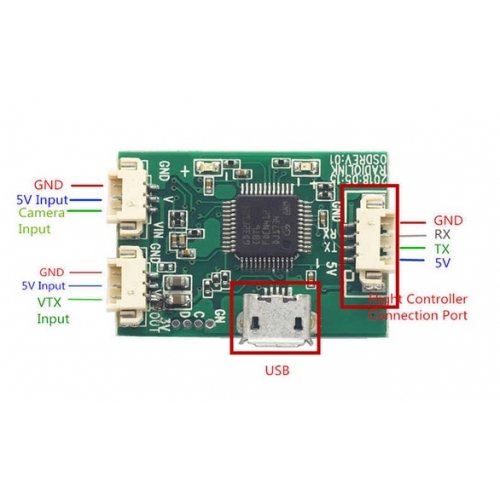

Connectable Equipment: Flight Controller/Camera/Image Transmission/Computer
Input Voltage: 4-6V
Operation Voltage: 5V
Operation Current: 60mA@5V
Operation Temperature: -20℃~+85℃
Video I/O Mode: PAL/NTSC
Item Size: 31 * 22 * 10mm
Item Weight: 8.5g(with wires)

Specifications:
Brand Name: RadioLink
Item Name: MINI OSD Video Overlap Module
Color: Green
Material: Metal and
Applicable Flight Controllers: All FC with MAVlink serial protocol
Connectable Equipment: Flight Controller/Camera/Image Transmission/Computer
Input Voltage: 4-6V
Operation Voltage: 5V
Operation Current: 60mA@5V
Operation Temperature: -20℃~+85℃
Video I/O Mode: PAL/NTSC
Item Size: 31 * 22 * 10mm
Item Weight: 8.5g(with wires)
