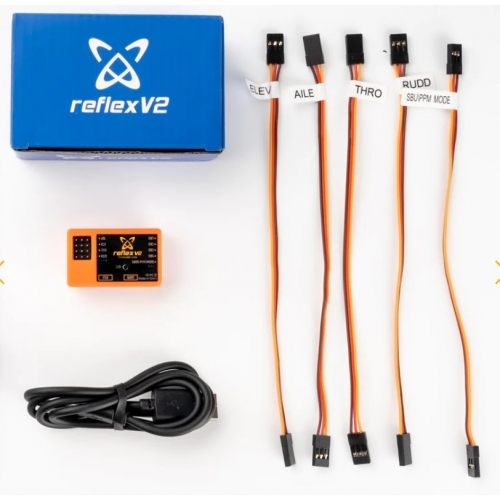

FMS Reflex V2 FMS Reflex V2 Flight Controller SBUS\PPM\PWM

alt

Description

We are proud to introduce the new and improved FMS Reflex V2!
A user-upgradable flight controller.
Reflex V2 can be reprogrammed easily with different model files via a simple software-allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own "co-pilot"- the Reflex V2!
REFLEX FUNCTIONS
3 flight modes are available: Stabilized, Optimized or off. This is controlled with a 2 or 3 position switch on the transmitter. When assigned to a 2 position switch, the Reflex system switches between stabilized and optimized modes.
Stabilized Mode - Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released- giving pilots absolute peace of mind.
OFF - Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.
Optimized Mode - Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets- from gusts to crosswinds.

WARNING!!!  This fligt controller can support FMS models only. There are predefined settings for FMS models.


Manual:
1.SBUS\PPM input: Connect the 3-wire cable into the port that is labelled SBUS\PPM. Ensure that the polarity of the cable is correct. The default
channel assignment is aileron, elevator, throttle, rudder and mode switch (Note: Different aircraft may have different flight modes, refer to your aircraft
manual for more information). If the channel assignment does not fit that of your transmitter system, change the channel order  from your transmitter.
alt
2.PWM: Connect the throttle and flight surface channels to their corresponding ports on the Reflex system. Connect a 3 wire cable from the channel
that is controlled by your 3 position switch to the port labelled SBUS\PPM to control the gyro mode.
alt
Operation: Turn on your transmitter first, then turn on your receiver. Set your aircraft down on a flat surface and have it remain level (the flight
controller LED will flash rapidly). When the gyro is properly calibrated, the aileron servos will cycle 3 times in rapid succession; then the elevator will
cycle 3 times in rapid succession- this signifies that the aircraft is ready for flight. Check that your 3-position switch is functional and that all channels
are operating correctly.

alt
alt

Specification:

- Size: 26.0mm x 34.5mm x 14.5mm
- Weight: 14.5g ( Whole Unit with wire )

INSTRUKCJA OBSŁUGI
