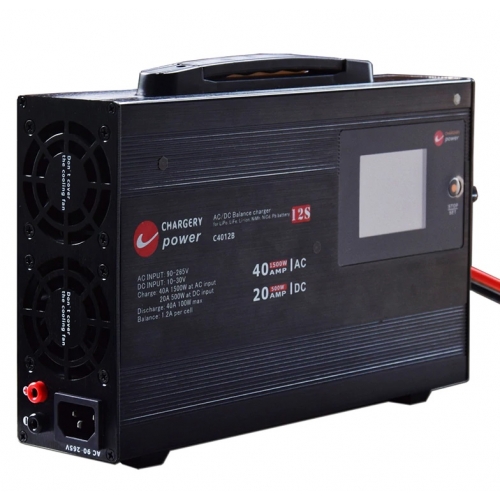

Chargery Power C4012B V3 1500W BMS 12S - LIPO, LI-ION, LiHV, LiTo, NIMH / NICD

alt

Special Features

1. Unique charge architecture realized better transient response to any changes of voltage on input and output.
2. The charger use advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 12S LiPo battery.
3. The charger adopts advance balance circuit and Algorithm, constant 1.2A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell voltage balance status at the shortest time. Over temperature protection make sure the system safety during balance.
4. Maximal 100W discharge power need not any external load, Over temperature protection make sure the system safety during discharge.
5. Charger internal temperature protection. When the internal temperature exceeds the setup temperature, the output power is automatically decreased; and the charger will stop working when temperature exceeds the shut-down temperature.

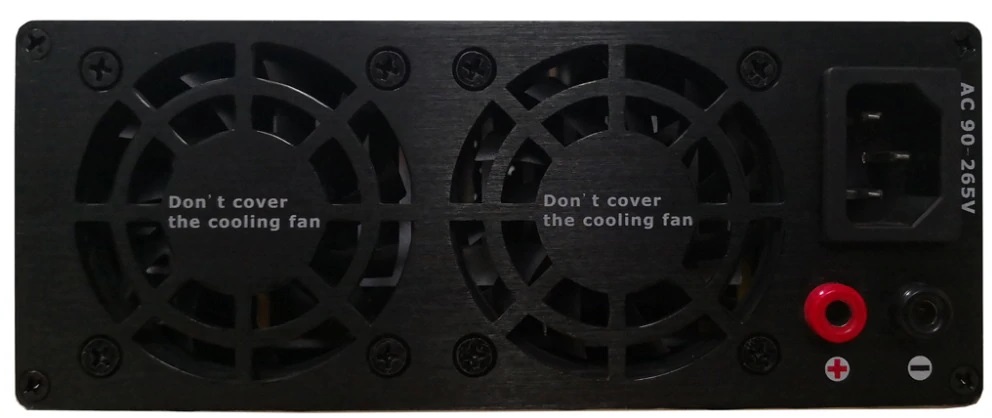

6. Intelligent fan control circuit sense internal temperature via temperature sensor, to thereby control the fan speed.
7. TFT LCD screen provides rich information including current, voltage, power, capacity, time, working status and temperature and so on.
8. The charger features a maximal safety protection, Reversed polarity protection on input and output Anti-spark on input and output even connect to 50V battery. Wrong battery connection protection when multi battery pack connected in series on adapter board. Charge time, charge capacity and battery temperature protection.
9. Supports upgrading the firmware program by USB port.

alt
alt
alt


Package:

Charger unit: 1pcs
Power cable for DC: 1pcs, AWG14 wire, 600mm length with 4mm gold male connector
Power cable for AC: 1pcs, AWG14 wire, 1500mm length
USB data line: 1pcs
Temperature sense lead: 1pcs
adapter wire: 2pcs, connect charger to adapter board
adapter board:2pcs
XT-90 female conntor:1pcs

alt

Specifications
1. Input voltage: DC 10-28V, 30V max. or AC 100-265V.
2. Input Current: 25A maximal at DC input, and 15Arms at AC110V input
3. Charge current: 0.1-20A, 500W max. at DC input, or 1-40A, 1500W max. at AC input
4. Discharge Current: 0.1-40A, 100W max.
5. Accuracy of the cell voltage: -5mV/+5mV
6. Balance current: 1.2A per cell only for LiPoly, Li-ion, LiTo and LiFePO4 battery pack
7. Battery Type: LiPoly, Li-ion, LiHV, LiTo, LiFePO4, NiMh/NiCd, Pb acid(VRLA) battery pack
Mechanical Characteristics
Size:281*170*68 (L×W×H, mm) or 11.1×6.69×2.68 (L×W×H, inch)
Weight: 3.5Kg without any accessories.
Input power cable: AWG14 wire, 600mm length for DC; AWG14 wire 1.5m length for AC
Output DC connector: XT-90 male connector

INSTRUKCJA OBSŁUGI
Specifications
1. Input voltage: DC 10-28V, 30V max. or AC 100-265V.
2. Input Current: 25A maximal at DC input, and 15Arms at AC110V input
3. Charge current: 0.1-20A, 500W max. at DC input, or 1-40A, 1500W max. at AC input
4. Discharge Current: 0.1-40A, 100W max.
5. Accuracy of the cell voltage: -5mV/+5mV
6. Balance current: 1.2A per cell only for LiPoly, Li-ion, LiTo and LiFePO4 battery pack
7. Battery Type: LiPoly, Li-ion, LiHV, LiTo, LiFePO4, NiMh/NiCd, Pb acid(VRLA) battery pack
Mechanical Characteristics
Size:281*170*68 (L×W×H, mm) or 11.1×6.69×2.68 (L×W×H, inch)
Weight: 3.5Kg without any accessories.
Input power cable: AWG14 wire, 600mm length for DC; AWG14 wire 1.5m length for AC
Output DC connector: XT-90 male connector
