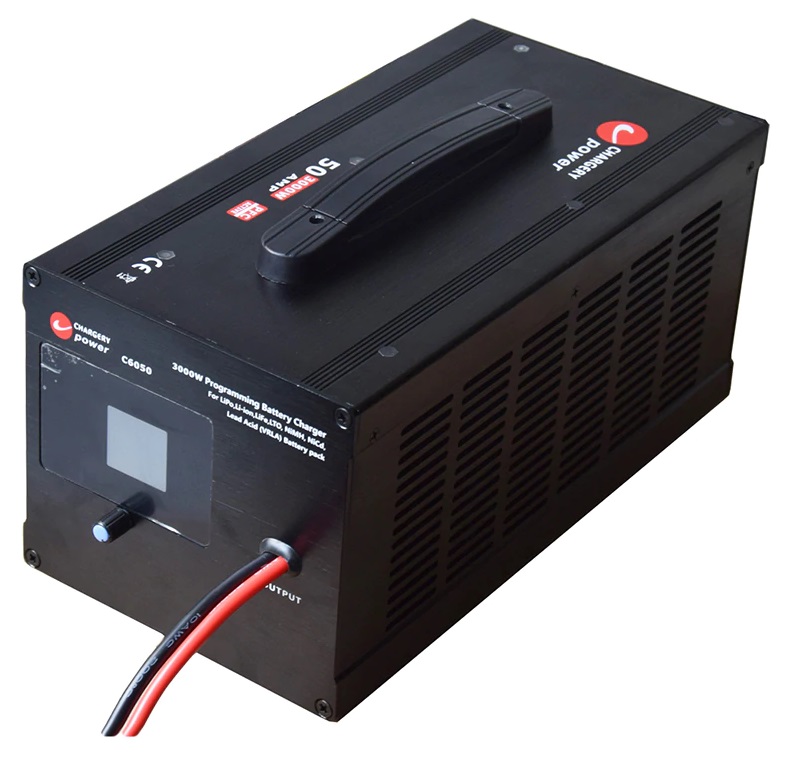

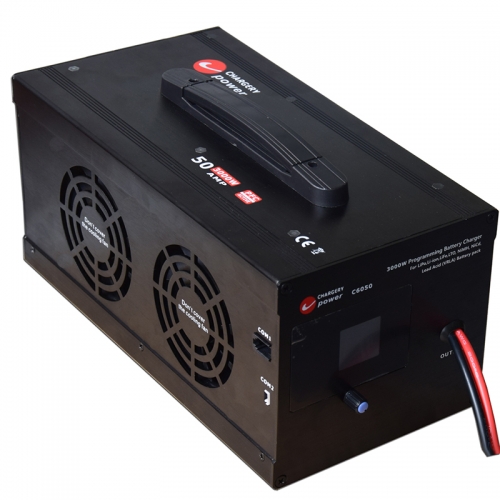

Chargery Power C6050  Programmable Charger Wide Input Voltage 90V~265V AC for LiPo/LiFe battery 1-55A / 3050W

C6050 is a high voltage battery charger, programmed battery type, cell count, charge current, charge terminal voltage for LI-ION, LIPO, LIFE, LiTo, NIMH/NICD, and Lead Acid battery. Optimization of system design make sure the 3000W charger consume less than 1W at idel mode. TFT color LCD is easy to display clearly voltage, current, capacity charged and internal temperature. One button design easy to operate and control the charge process.Although C6050 charge any battery at 55A 3000W, the efficiency is still up to 94% at a smaller size. The charger has two versions. C6050A can communicate with external device and charge current can be controlled by remote device. C6050B can work on Auto mode and normal mode, on Auto mode, Connec to AC power or battery pack, the charger will start to charge automatically, need not any setup and other operation. Both version can work as power supply and communicate with Chargery BMS. when any cell voltage over setup OVP, the charge current will decrease automatically prevent any cell from over charged.

1. Over current protection
2. Over voltage protection
3. Charge power protection
4. Over temperature protection
5. Anti spark on battery connection even 100V battery connect to charger
6. Reverse polarity protection of battery connection
7. Prevent any cell from over charging, adjust charge current automatically fit with Chargey BMS
8. LCD display battery voltage, charge current, charging time, capacity charged
9. Charge terminal voltage, terminal current and cell count is programed.

1. Chargery Power c6050
2. Power cord

Specifications

1. Input voltage: AC 90-265V
2. Input RMS Current: 32A maximal
3. Charge current: 1-55A, 3050W max.
4. Battery Type:
5. 4S-13SLiPoly, Li-ion,
6. 5S-15SLiFePO4,
7. 7S-20S LiTo,
8. 10S-36S NiMh/NiCd,
9. 6S-22S Pb acid(VRLA)
