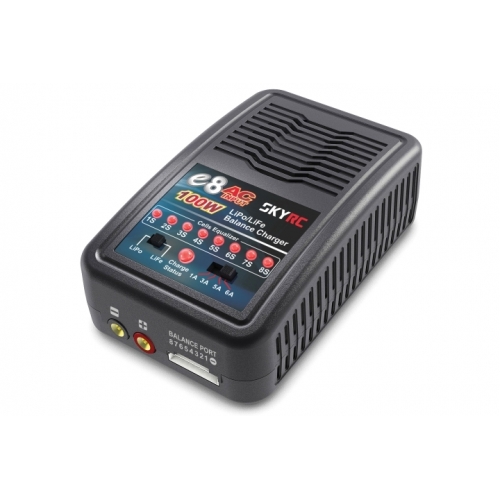

SkyRC e8 100W 8s 6A 230V AC

SkyRC e8 100W 8s 6A 230V AC

SkyRC

Availability: Not available

Shipping time: 24 hours

The cost of shipping: from 3.26 Euro Available delivery forms for viewing the product:Curier Service - 4.19 Euro
Air Mail - 3.72 Euro
Poczta Polska list polecony - 3.72 Euro
Surface mail - 3.26 Euro
InPost Paczkomaty24 - 3.26 Euro
Personal Acceptance - 0.00 Euro

Number: 212

Producer code: SK-100096

Stockage:

Price: 57.91 Euro

Currently not available

add to wish list

  • Product description
  • Specifications:
  • Product reviews (0)

  SKYRC e8 Charger is an economic, high quality 100-240V AC balance charger, designed for charging LiPo and LiFe batteries from 2-8 cells in balance mode. The circuit power is 100W and max charge current can reach to 6A. There are four different charge current 1A/3A/5A/6A which can be selected. You could select the proper charge current according to battery capacity.

  • Low cost and Compact Size .
  • With Built-In AC Adaptor and universal voltage AC 100-240V input, e8 charger can be used all over the world and no need additional adaptor.


  • Easy to operate .
  • Charge in balance Mode.

Charge Status LED LED green blinking The charger is ready to charge.
LED glows constant red The charger is charging in CC mode.
LED glows constant orange The charger is charging in CV mode.
LED glows constant green The charging process finishes.
Cell Status LED LED glows constant red The cell is charging.
LED flashes red The cell is discharging.


  * Error Message
If there is an error, the charge status LED and one of the cell LED will blink in sequence.


LED Status Error Message
charge status LED + Cell 1 LED The voltage difference among cells is too big
(more than 300mV)
charge status LED + Cell 2 LED Wrong connection
charge status LED + Cell 3 LED Over current protection
charge status LED + Cell 4 LED Reverse polarity


  In this case, please disconnect the power cord from the wall socket and unplug the battery
from the charger.




  AC Input   100-240V
  Battery Type   LiPo/LiFe
  Cell Count   2-8 cells
  Charge Current   1A/3A/5A/6A ± 10%
  Circuit Output Power   100W
  Current Drain for Balancing   200mA
  Dimension   93x150x51mm
  Weight (Without Cable)   450g



SkyRC e8 100W 8s 6A 230V AC SK-100096 in the shop RcHubiQ

alt

  AC Input   100-240V
  Battery Type   LiPo/LiFe
  Cell Count   2-8 cells
  Charge Current   1A/3A/5A/6A ± 10%
  Circuit Output Power   100W
  Current Drain for Balancing   200mA
  Dimension   93x150x51mm
  Weight (Without Cable)   450g
