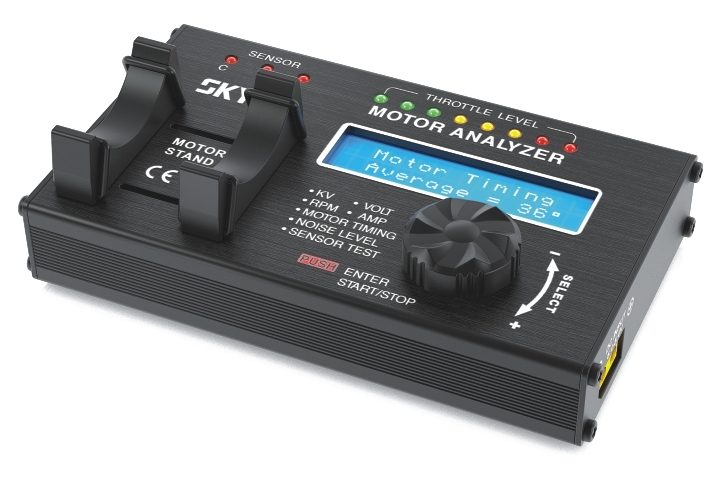

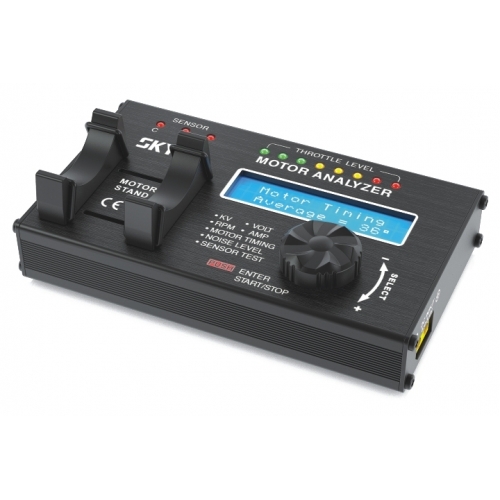

SkyRC Brushless Motor Analyzer

SkyRC Brushless Motor Analyzer

SkyRC

Availability: Available in stock

Shipping time: 24 hours

The cost of shipping: from 2.14 Euro Available delivery forms for viewing the product:Curier Service - 3.57 Euro
Air Mail - 3.81 Euro
Poczta Polska list polecony - 3.10 Euro
Surface mail - 3.33 Euro
InPost Paczkomaty24 - 2.14 Euro
Personal Acceptance - 0.00 Euro

Number: 189

Producer code: SK-500020

Condition:

Price with TAX: 91.19 Euro

Price: 74.14 Euro

Quantity: pcs.
Add to cart

add to wish list

  • Product description
  • Specifications:
  • Product reviews (0)

  SKYRC motor analyzer is a precision electronic device that is especially designed for measuring the KV value, RMP, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.

SkyRC Brushless Motor Analyzer ( SK-500020 ) RcHubiQ.eu

SkyRC Brushless Motor Analyzer ( SK-500020 ) RcHubiQ.eu

SkyRC Brushless Motor Analyzer ( SK-500020 ) RcHubiQ.eu


  KV(RPM per Volt) Show the rotor RPM/Volt at a certain throttle power level.
U(VOLT) Show the input voltage to motor checker.
RPM(Revolution Per Minutes) Show the rotor revolution at a certain throttle power level.
I(AMP) Show the current drawn by the motor at a certain throttle power level.


  MOTOR TIMING: Physical endbell timing, usually between 0 and 70 degrees, requires tools to rotate the sensor board.

  NOISE LEVEL: Poor assembly motor, inferior bearing and unbalanced rotor can generate a vibration. Whenever a motor in air vibrates, it causes compression waves in the air. These waves move away from the motor as sound or noise.
Vibration noise of motor is adverse the performance of motor. By measure the noise level of motors, you can select the less noise motor.
The decibel (dB) is a logarithmic unit used to express noise level in this motor analyzer.


  Phase A, B and C Sensor Timing: Show the actual timing of three sensor elements as above picture.


SkyRC Brushless Motor Analyzer ( SK-500020 ) RcHubiQ.eu

  1. SkyRC Blushless Motor Analyzer
2. Motor Sensor Cable
3. Motors cables with 3.5mm banana connector and Crocodile Clip
4. DC Input Power Cable with XT60 connector and 4.0mm banana
  connectors
5. DC Input Power Cable with XT60 connector and Tamiaya connector



SkyRC Brushless Motor Analyzer SK-500020 in the shop RcHubiQ

alt

  Dimersions
  Net Weight   282gram (Without Cabel)
  Input Voltage   7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery)
  LCD Display Screen   Blue Backlight Background, White Text, 16 Characters X 2 Lines
  KV Value Accuracy   +/- 3%
  Motor Timing Accuracy   +/- 4%
  Motor Timing Range   0-70°
  Noise Level Measurement Range   60dB - 120dB
  Supported Motor   Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)




Current Drawn Less Than 30A at 8.4V Without Loading
