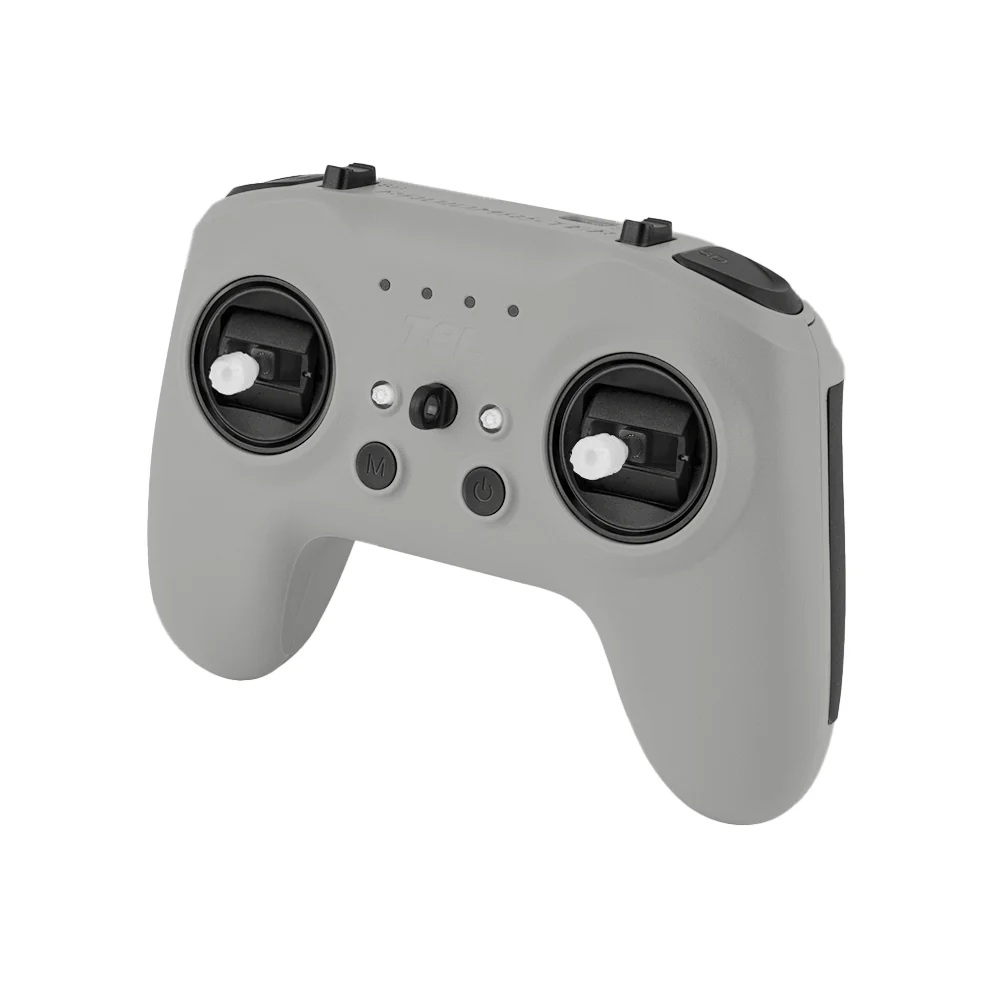

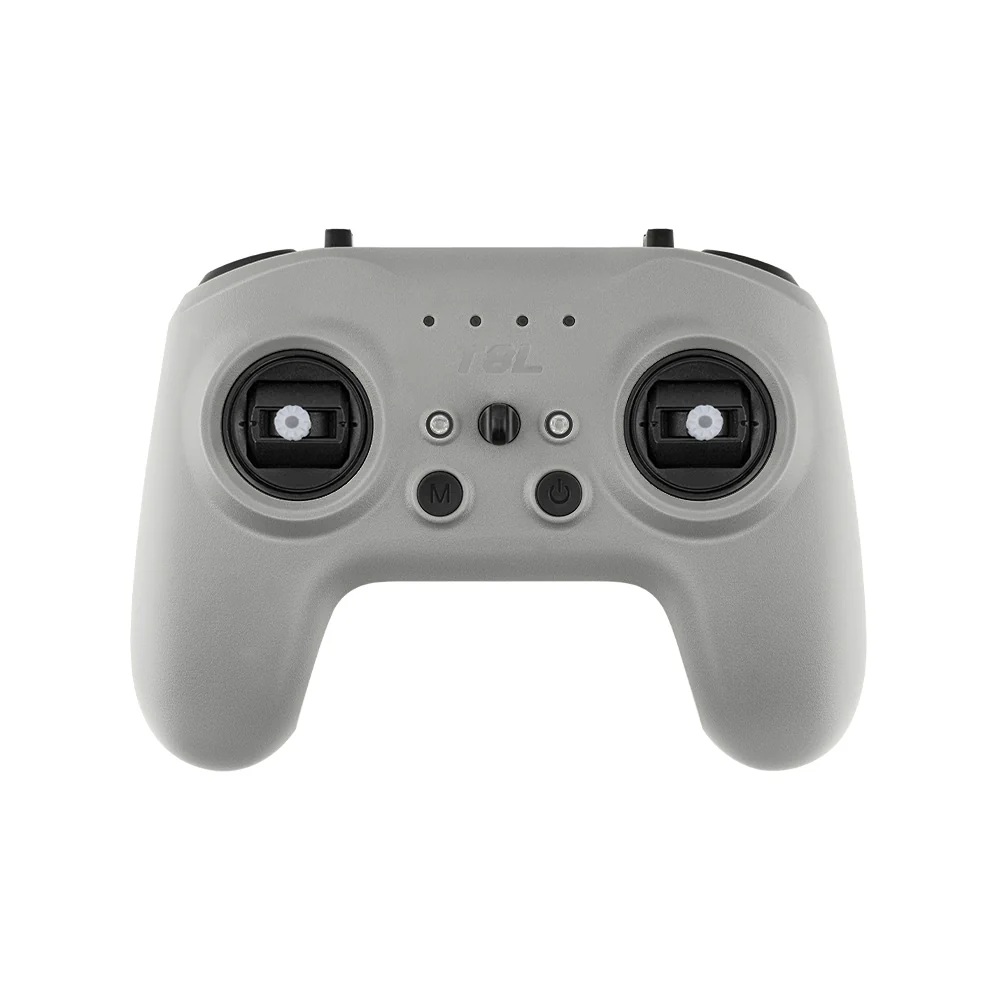

RadioMaster Radio Controller T8L ELRS LBT Mode 2 - Grey

Features

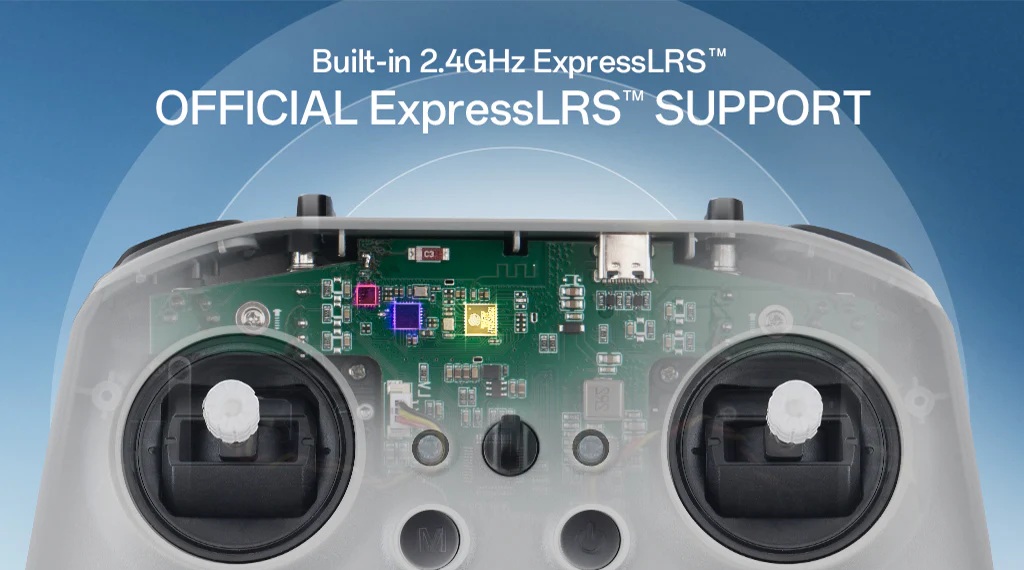

Built-in ExpressLRS 2.4GHz module
Single button press binding to any ExpressLRS receiver

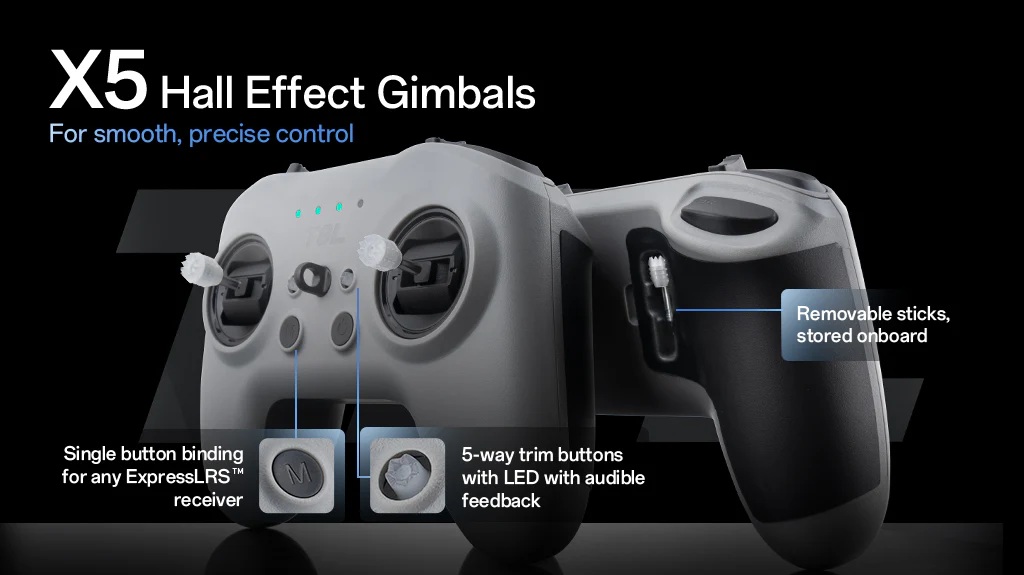

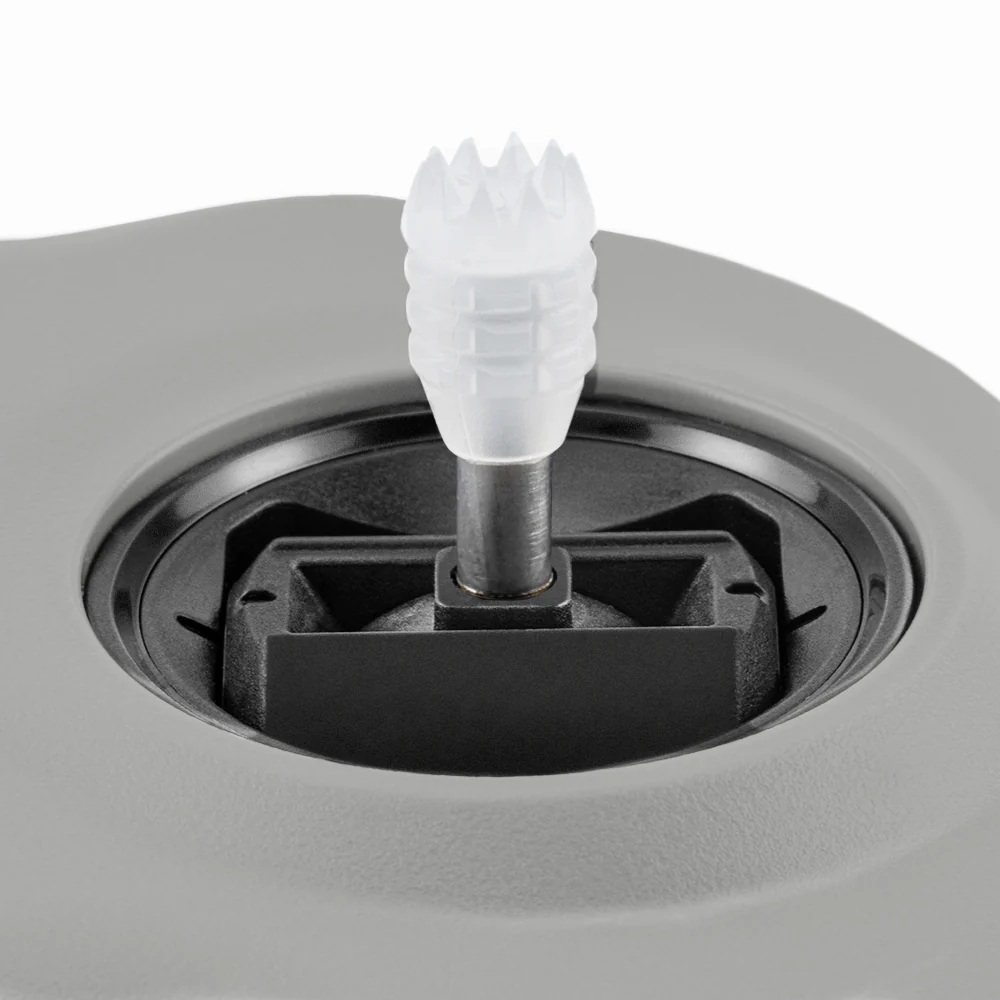

Quad bearing Hall-effect gimbals for smooth, precise stick control
5-way trim buttons with LED and audible feedback
Available in three colors: Blue, White and Grey

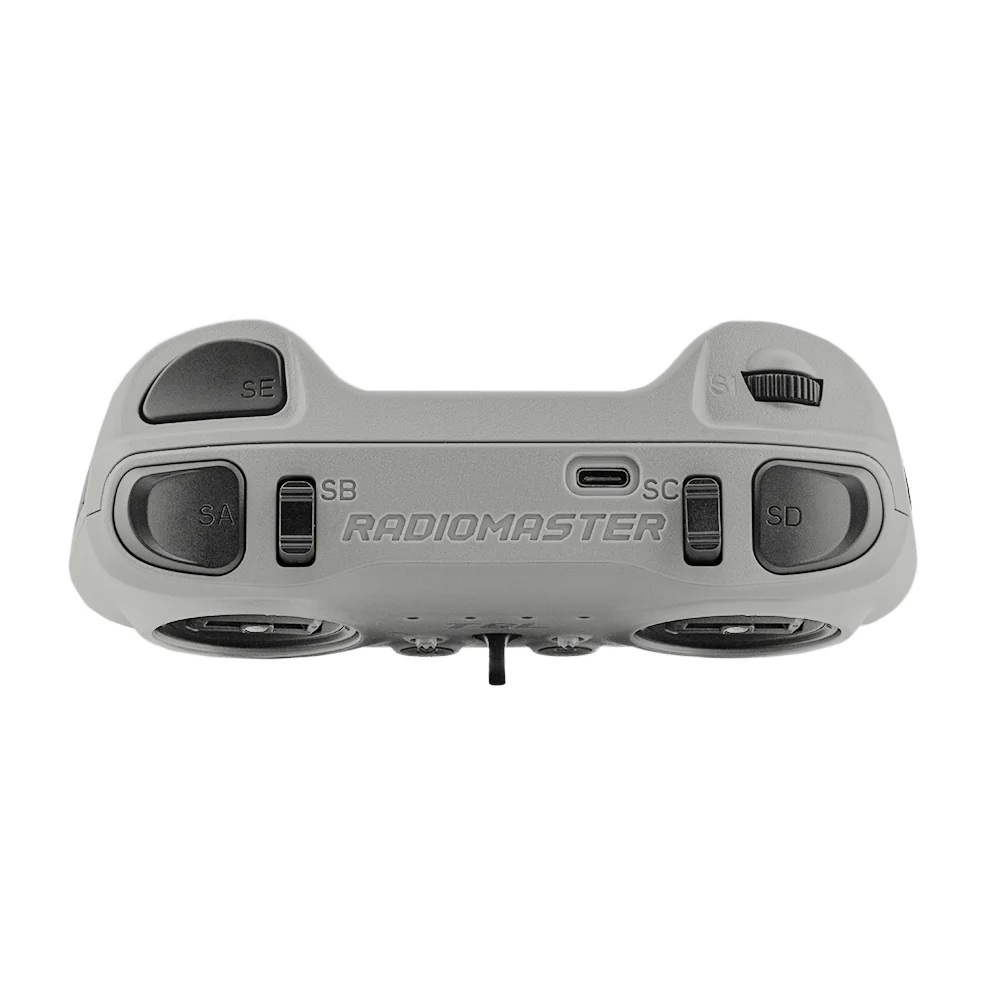

USB-C port for charging, firmware updates, and simulator use
Web-UI support (no screen required) for full configuration
Up to 10 channels supported (receiver-dependent)

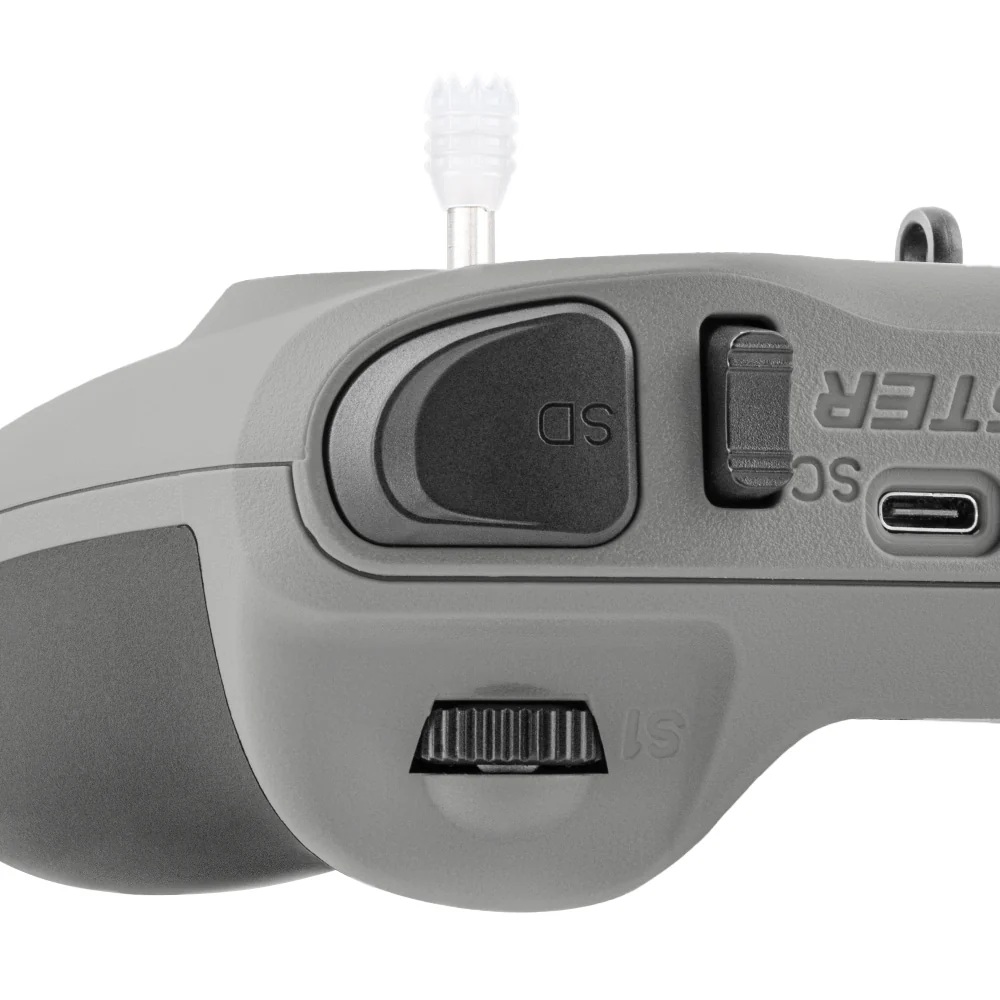

Rear potentiometer slider for extra input or tuning
Compact, lightweight design (just 204g) for easy transport
LED-based interface for system status, battery level, and calibration
Simulator-compatible—connect via USB
Custom button and switch behavior settings via Web UI

The RadioMaster T8L brings the power of ExpressLRS 2.4GHz into a clean, compact form — and is the first screenless radio controller officially supported by ExpressLRS. Whether you’re working on compact projects, running simulators, testing configurations, or need a dependable backup controller, the T8L delivers a smooth, streamlined experience. Its compact size and removable gimbal sticks make it easy to travel with, while the straightforward layout and reliable performance suit training, development, demonstrations, and everyday control tasks where consistency matters. With high-precision quad-bearing Hall-effect gimbals, integrated USB-C charging, and simulator compatibility, the T8L is ready to go right out of the box. Setup is quick and easy through a web-based configuration tool that runs directly in Chrome or Edge — no display or external software required.

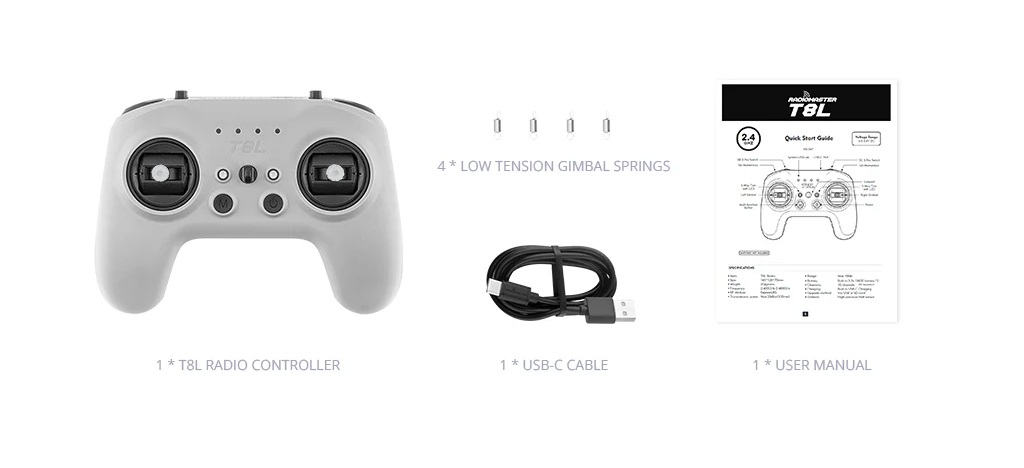

Package:

1. Radiomaster T8L
2.USB Cable
3. Manual

Specification

Item: T8L Radio Controller

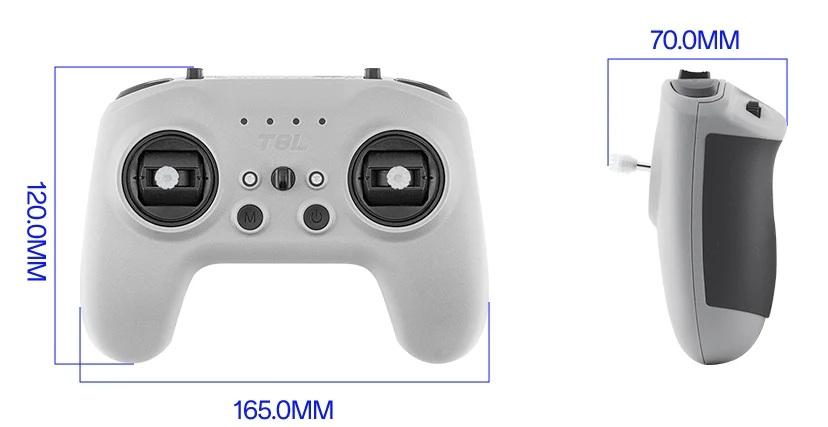

Size: 165*120*70mm
Weight: 204g
Frequency: 2.400GHz-2.480GHz
RF Module: 2.4GHz ExpressLRS(SX1281)
Transmission power: Adjustable 10dBm(10mW) - Max 20dBm(100mW)
Battery: 3.7v 18650 x 2 (Not Included)
Charging: Built-in USB-C charging
Firmware: T8L (Special T8L Edition, non-configurable)
Colors: Blue, White, Grey
Channels: Up to 10 channels (depending on the model/receiver)
Gimbal: X5 Hall-effect, quad ball-bearing, nano gimbals
